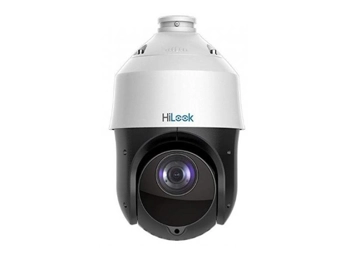

HiLook 2MP 15 Zoom PTZ Darkfighter

Image Sensor 1/2.8" progressive scan CMOS
Max. Resolution 1920 × 1080
Min. Illumination Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0.001 Lux @(F1.6, AGC ON), 0 Lux with IR
Shutter Speed 1/1 s to 1/30,000 s
Day & Night IR Cut Filter
Zoom 15x optical, 16x digital
Focal Length 5 mm to 75 mm, 15× optical
FOV Horizontal field of view: 53.8° to 4.0° (wide-tele),
Focus Auto, semi-auto, manual
Aperture F1.6 to F3.0
Zoom Speed Approx. 2.4 s (optical lens, wide-tele)
Supplement Light Type IR
Supplement Light Range Up to 100 m
Smart Supplement Light Yes
Movement Range (Pan) 360° endless
Movement Range (Tilt) From -15° to 90° (Auto-flip)
Pan Speed Configurable, from 0.1°/s to 80°/s, Preset Speed: 80°/s
Tilt Speed Configurable, from 0.1°/s to 80°/s, Preset Speed: 80°/s
Proportional Pan Yes
Presets 300
Preset Freezing Yes
Patrol Scan 8 patrols, up to 32 presets for each patrol
Pattern Scan 4 pattern scans, record time over 10 minutes for each scan
Park Action Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
PTZ Status Display Yes
Scheduled Task Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust
Power-Off Memory Yes
Main Stream 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),
Sub-Stream 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288),
Third Stream 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288),
Video Compression Main Stream: H.265 /H.265/H.264 /H.264,
Video Bit Rate 32 Kbps to 16384 Kbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region Of Interest (ROI) Main stream, sub-stream and third stream respectively support four fixed areas
Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, WebSocket, WebSockets
Simultaneous Live View Up to 20 channels
API Open Network Video Interface, ISAPI, SDK, ISUP
User/Host Up to 32 users. 3 levels: Administrator, Operator and User
Security User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
Network Storage NAS (NPS, SMB/ CIPS), ANR
Client iVMS-4200, HiLookVision
Web Browser IE10-11, Chrome 57 , Firefox 52 , Safari 12
Image Settings Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Wide Dynamic Range (WDR) 120 dB
Defog Digital defog
Image Stabilization No
Image Enhancement BLC, HLC, 3D DNR
Privacy Mask 24 programmable privacy masks
Regional Focus Yes
Regional Exposure Yes
Ethernet Interface 1 RJ45 10 M/100 M Ethernet Interface; PoE (802.3 at, class4)
On-Board Storage Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB
Basic Event Motion Detection, Video Tampering Detection, Exception Detection
Smart Event Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Unattended Baggage Detection, Object Removal Detection
Power 12 VDC, 2.0 A & PoE (802.3at), 42.5 to 57 VDC, 0.6 A, class4
Dimension Ø 165.9 mm × 290 mm (Ø 6.53" × 11.42")
Weight Approx. 2.5 kg (5.51 lb)
Material ADC 12, PC 10% GF
EMC FCC (47 CFR Part 15, Subpart B);
RCM (AS/NZS CISPR 32: 2015);
IC (ICES-003: Issue 7);
KC (KN 32: 2015, KN 35: 2015)
Safety UL (UL 62368-1)
CE-LVD (EN 62368-1:2014 A11:2017),
BIS (IS 13252(Part 1):2010/ IEC 60950-1: 2005);
LOA (IEC/EN 60950-1)
WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006)
Protection IP66 (IEC 60529-2013), 4000V Lightning Protection, Surge Protection and Voltage Transient Protection
