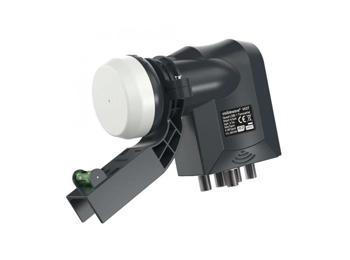

Quad LNB Terrestrial 4 Out, 1 In

Visiblewave Quad LNB with Terrestrial Combiners (1-in, 4-out) supplied with bracket

Features…

QUAD TERR LNB 4 outputs, 1 input

• Describe by some in the trade as a “mini-multiswitch”
• Combines terrestrial and satellite signals onto each downlead
• Ideal for both FreeSat^TM or SkyHD^TM and FreeView^TM reception
• Recommended for use with Labgear high-gain TV aerial
• Supplied with bracket to fit Mk4 dishes – bracket incorporates level

  Terrestrial
  Frequency Range	40 ~ 790 MHz
  Insertion Loss	8 ~11dB, 9dB (typ.)

• DESCRIPTION of Inverto Quad LNB with Terrestrial Input

  • Universal Quad LNB With Terrestrial Input
  • Outputs: 5
    • 4x Satellite
    • 1x Terrestrial
  • Colour: Black
  • Neck Diameter: 40mm
  • Connections: F-Type Connectors
  • Primarily Used With Universal Satellite Dishes (Alternatively, Use With Adapter on Sky Dish)
  • Input Frequency
    • Low Band: 10.7 - 11.7 GHz
    • High Band: 11.7 - 12.75 GHz
  • Output Frequency
    • Low Band: 950 - 1950 MHz
    • High Band: 1100~2150 MHz
  • Noise Figure
    • Low/High Band: 0.2 dB Typ. (0.7 dB Max.)
    • Conversion Gain: 55 dB Min
  • Manufacturer: Inverto

  USES of Inverto Quad LNB with Terrestrial Input

  • Use in conjunction with a UHF aerial to feed up to 4 combo receivers from a single universal satellite dish
    • At the set top box, the signal is split back out using a TV signal combiner
  • Used in conjunction with our range of universal dishes from 60-120cm
  • When used in conjunction with a MK3 to MK4 LNB Adapter, it is possible to use this LNB on a Sky satellite dish

  ADVANTAGES of Inverto Quad LNB with Terrestrial Input

  • Unlike normal LNBs, the Inverto quad LNB with terrestrial input has 4 satellite outputs & 1 terrestrial (Saorview) output
  • This means you can feed one single cable to each viewing room with a combined satellite and terrestrial feed
  • Offers a very simple and low cost solution to the problem of single cable multi-room setups
  • The combined satellite & terrestrial feed can then be split out using a aerial & satellite combiner in reverse in the viewing location
  • This saves time and money by only having the run one single cable to each viewing location

  How it Works - Inverto Quad LNB with Terrestrial Input

  • You simply connect your terrestrial (aerial) feed directly to the quad LNB
  • The LNB works like a mini multiswitch by taking in the following...
    • A feed from the UHF aerial
    • A signal from a satellite dish
  • It outputs the following....
    • Up to 4 independent feeds containing satellite and terrestrial feeds
  • Combined signal at each box is then split back out using the following...
    • A satellite & TV aerial combiner (in reverse)
    • A satellite and TV aerial wall plate
    • Alternatively don't split at all if running directly to a single tuner TV or set top box
      • This would give either satellite or terrestrial viewing - but not both
